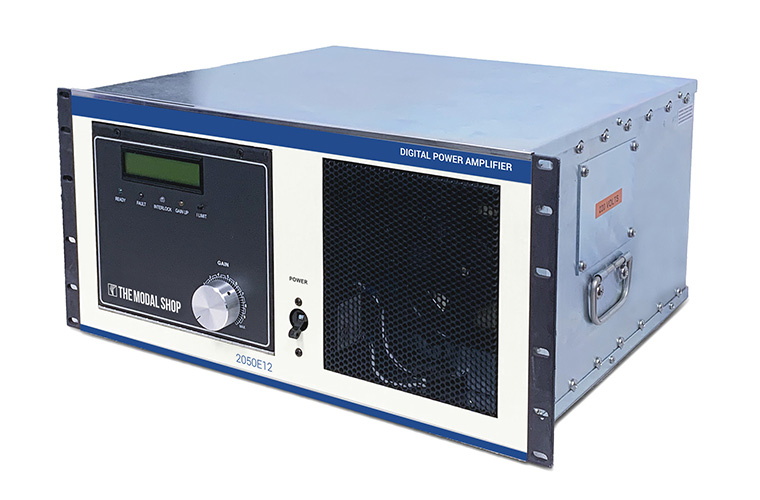

2050E12 Digital Power Amplifier

full specs

The 2050E12 Digital (Class D) Power Amplifier is a digital switching amplifier engineered to drive large vibration test shakers. The Class D design yields much higher efficiency under load than conventional linear amplifiers, reducing heat rejection and enabling a smaller physical amplifier for the same output capability. A multi-function digital display offers readouts of output voltage and current, prompts operators at startup for pre-start fault conditions, and serves as an internal/external fault diagnostic with retained fault indication. High-visibility Ready, Fault, Interlock, and Gain-up indicators provide status at a distance. Programmable output current limiting is standard for shaker over-drive protection. The unit is built for installation in standard 19‑inch racks and uses internal two-speed, temperature-controlled fans tied to the output module heat sink and main transformer to ensure quiet operation.

2050E12 Highlights

• Digital Class D switching amplifier
• Air-cooled, 19‑inch rack-mount design
• AC‑coupled input — operation down to 1 Hz for full low-frequency displacement
• Multi-function digital display with bar-graph and numeric output voltage/current readouts
• Startup prompts and retained internal/external fault diagnostics
• High-visibility Ready, Fault, Interlock, and Gain-up indicators
• Programmable output current limiting for shaker protection
• Internal two-speed, temperature-controlled fans for quiet operation

Works With

• 2500E Vibration Shaker
